Using the App

This document describes common use-cases and scenarios for the Intent Networking app.

General Usage

The core workflow is always the same regardless of intent type:

  1. Author — Write a declarative YAML file describing desired state
  2. Sync — Push to Git; Nautobot auto-syncs via GitRepository

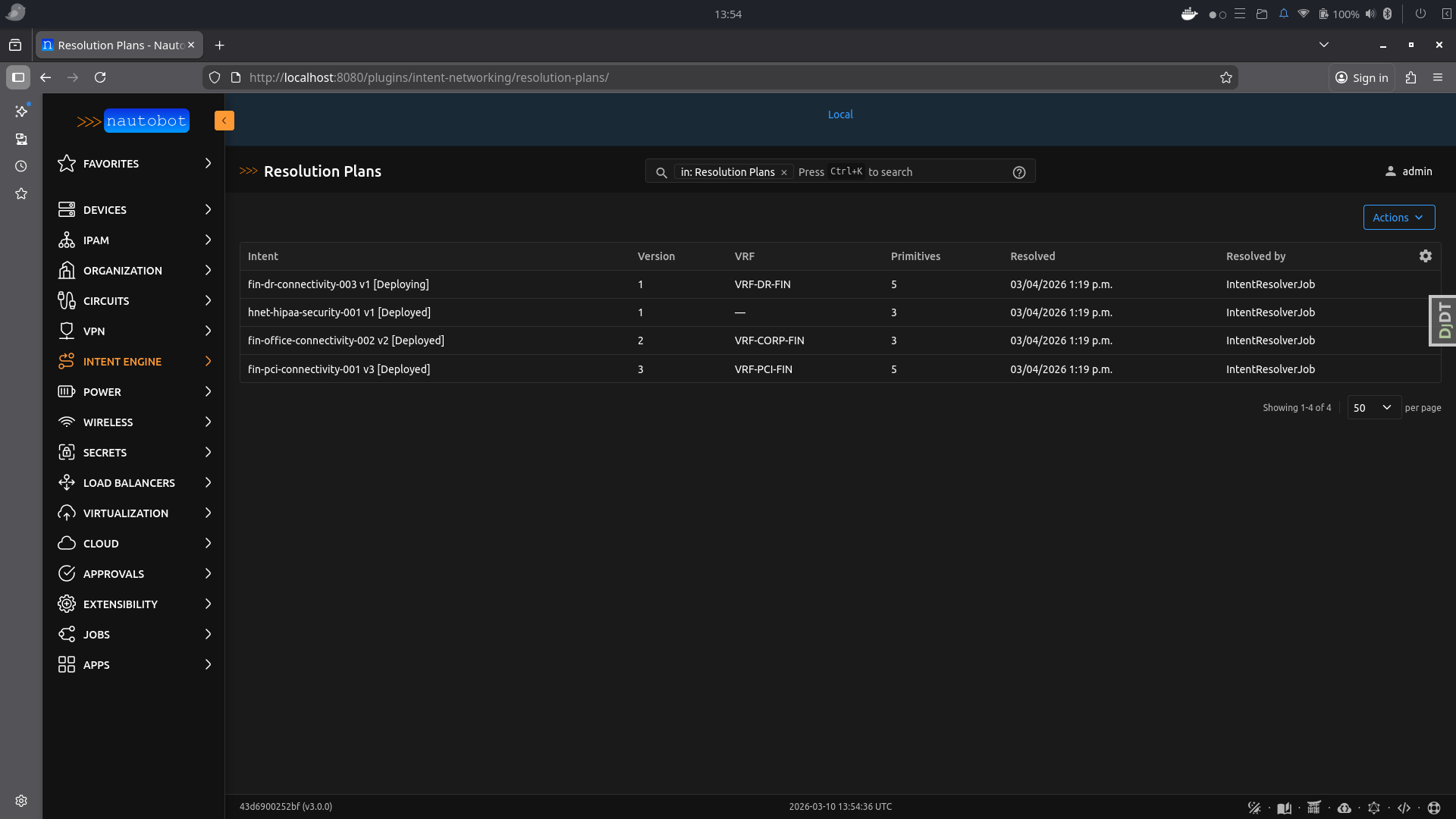

  3. Resolve — The resolver translates the intent into a deployment plan with allocated resources
  4. Deploy — Nornir pushes device configurations
  5. Verify — Post-deployment checks confirm the intent is satisfied
  6. Reconcile — Scheduled drift detection compares live state against the intent

Use Cases and Common Workflows

Enterprise L3VPN Connectivity

Scenario: Connect multiple branch offices to a data centre over MPLS L3VPN.

  • Intent type: mpls_l3vpn
  • What the app does: Allocates a VRF (with RD/RT values via Nautobot native IPAM), resolves PE-facing interface configurations, and deploys VRF + BGP peering to each PE router.
  • Resource allocation: Automatic VRF, RD (<ASN>:<counter>), and RT allocation within the configured Namespace.

Data Centre EVPN/VXLAN Fabric

Scenario: Provision a new tenant overlay across a leaf-spine VXLAN EVPN fabric.

  • Intent type: evpn_vxlan_fabric
  • What the app does: Allocates a VNI from a VxlanVniPool, creates VLAN-to-VNI mappings, resolves EVPN type-2/type-5 route configurations for each leaf switch.
  • Resource pools used: VxlanVniPool, TunnelIdPool

Security Segmentation

Scenario: Enforce PCI-DSS network segmentation between cardholder data environments and general corporate traffic.

  • Intent type: acl_ipv4 / zone_based_firewall
  • OPA integration: An OPA policy verifies that the proposed ACL rules meet PCI-DSS requirements before deployment is allowed.
  • Audit trail: Every approval and deployment action is recorded in IntentAuditEntry.

WAN / SD-WAN Site Onboarding

Scenario: Onboard a new branch site with DMVPN or SD-WAN overlay connectivity.

  • Intent types: dmvpn_spoke, sdwan_edge, ipsec_tunnel
  • What the app does: Allocates a tunnel ID from TunnelIdPool, resolves crypto maps or SD-WAN templates, assigns a loopback from ManagedLoopbackPool.

Wireless VLAN Provisioning

Scenario: Roll out a new SSID across all campus APs with a dedicated VLAN.

  • Intent type: wireless_ssid
  • Resource pools used: WirelessVlanPool — allocates a VLAN ID per site for the SSID.

BGP Peering (eBGP / iBGP)

Scenario: Establish BGP peering between a customer edge and provider edge router.

  • Intent types: bgp_ebgp, bgp_ibgp
  • What the app does: Resolves the BGP session configuration including ASN, neighbor address, address families, and route policies.

QoS Policy Deployment

Scenario: Apply consistent QoS marking and queuing policies across all WAN interfaces.

  • Intent types: qos_policy, traffic_shaping, dscp_marking
  • What the app does: Resolves class-map, policy-map, and service-policy configurations per-device.

Continuous Compliance (Reconciliation)

Scenario: Detect and remediate configuration drift across all deployed intents.

  • How it works: The IntentReconciliationJob runs on a configurable schedule (default: hourly). For each deployed intent, it re-verifies the live state. If drift is detected:
    1. An event is emitted (intent.drift)
    2. Slack/PagerDuty notifications are sent
    3. If auto_remediation_enabled is True and OPA approves, the app automatically re-deploys the intent
    4. If auto-remediation is not possible, a GitHub issue is created

Multi-Tenant Isolation

Scenario: Ensure strict resource isolation between tenants.

  • Built-in guardrails:
    • VRF allocation is scoped per-tenant within a Namespace
    • max_vrfs_per_tenant limits prevent resource exhaustion
    • Tenant isolation validation runs during resolution to detect conflicts

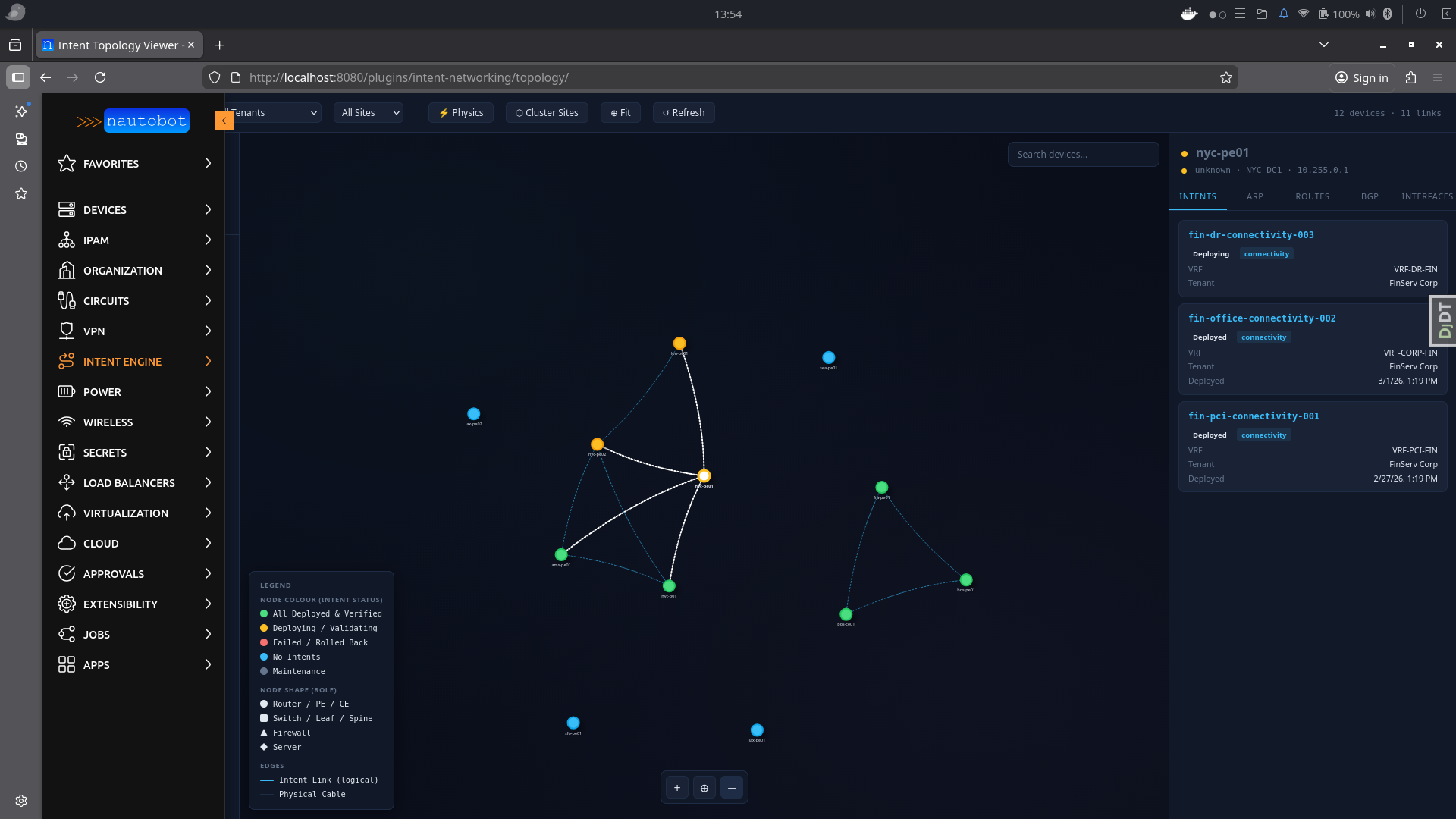

Topology Viewer

The app includes an interactive, full-screen topology viewer accessible at Intent Networking → Topology Viewer. Features include:

  • vis.js graph — Devices as nodes, links as edges, colour-coded by intent status
  • Intent highlighting — Click an intent to highlight affected devices and links
  • Live data overlay — Interface status, IP addresses, and VRF membership shown on hover
  • Filtering — Filter by tenant, site, or intent type
