External Interactions¶

This document describes external dependencies and prerequisites for this App to operate, including system requirements, API endpoints, interconnection or integrations to other applications or services, and similar topics.

External System Integrations¶

From the App to Other Systems¶

The app makes outbound requests only when you run one of its two discovery jobs. Nothing in the app calls an LLM for inference, and nothing calls an MCP tool.

Discover AI Models¶

Property	Value
Request	`GET <remote_url>/v1/models`

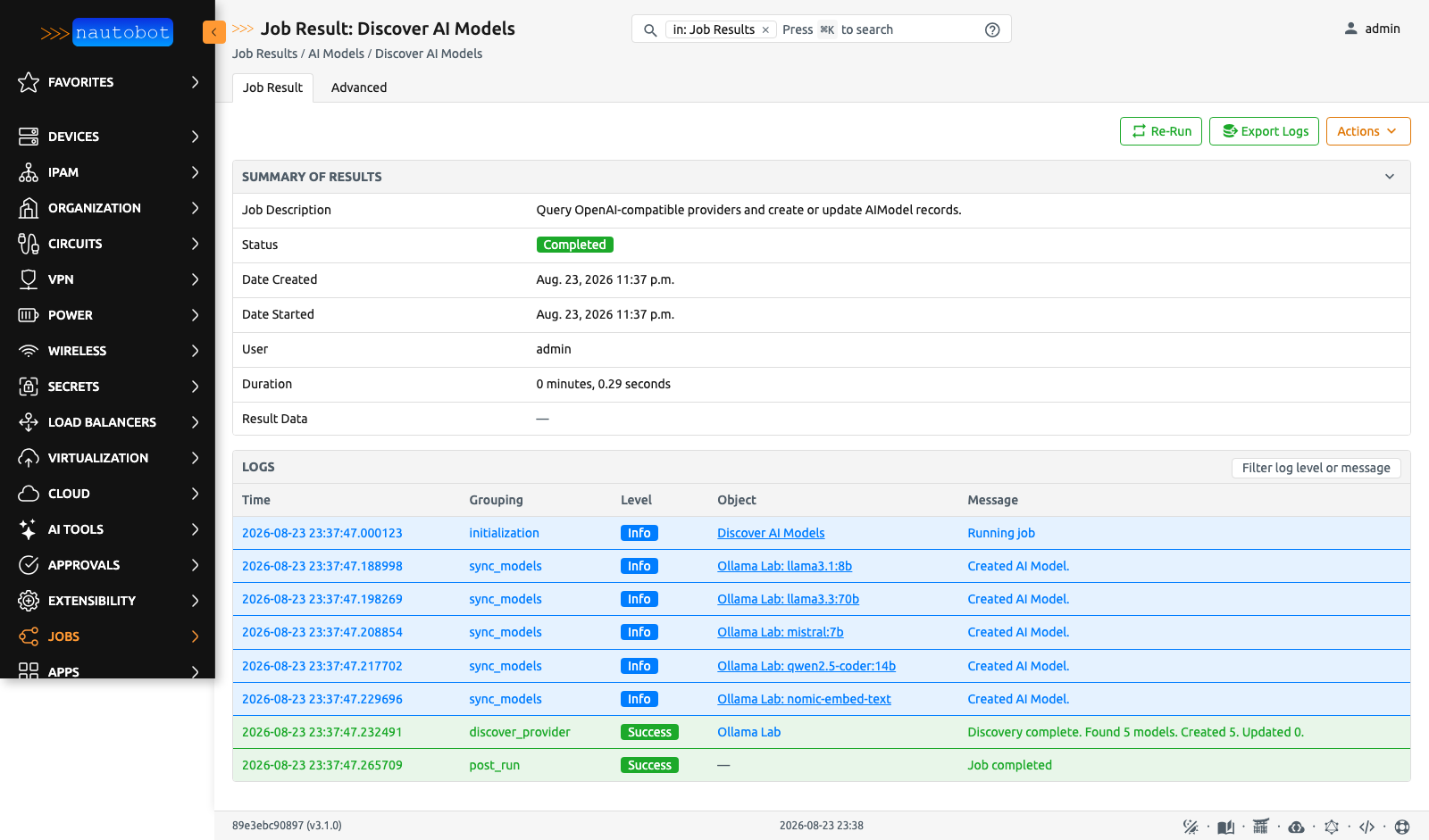

Trigger	The Discover AI Models Job, run by a user or on a schedule

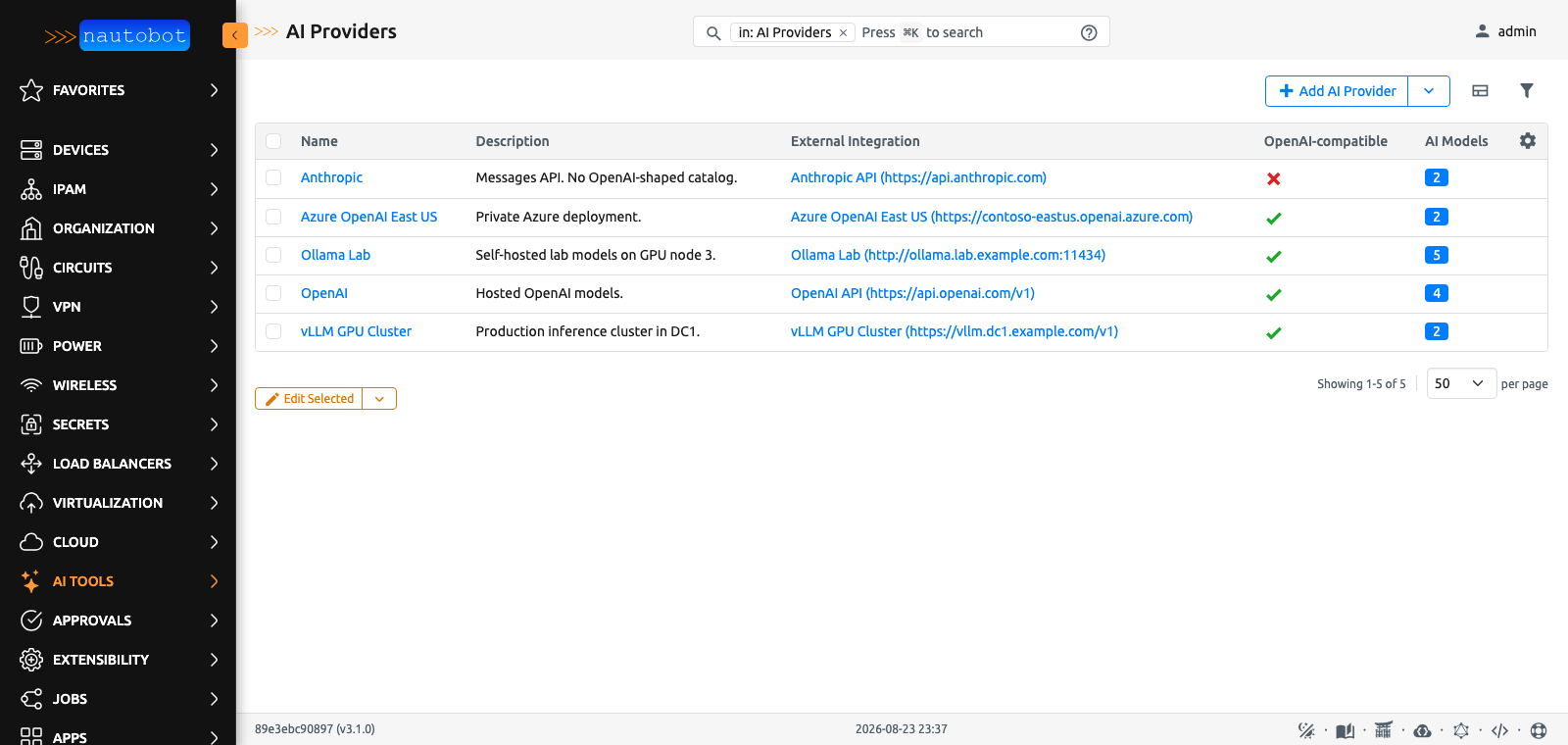

Target	Every AI Provider where OpenAI-compatible is true
Response	The OpenAI model catalog, `{"data": [{"id": "...", "owned_by": "..."}]}`

GET /v1/models is the de facto standard model-discovery endpoint. OpenAI, Azure OpenAI, vLLM, Ollama, LM Studio, llama.cpp server, Groq, Together, and OpenRouter all serve it. No equivalent standard exists for other endpoints, so the job skips a provider that is not OpenAI-compatible.

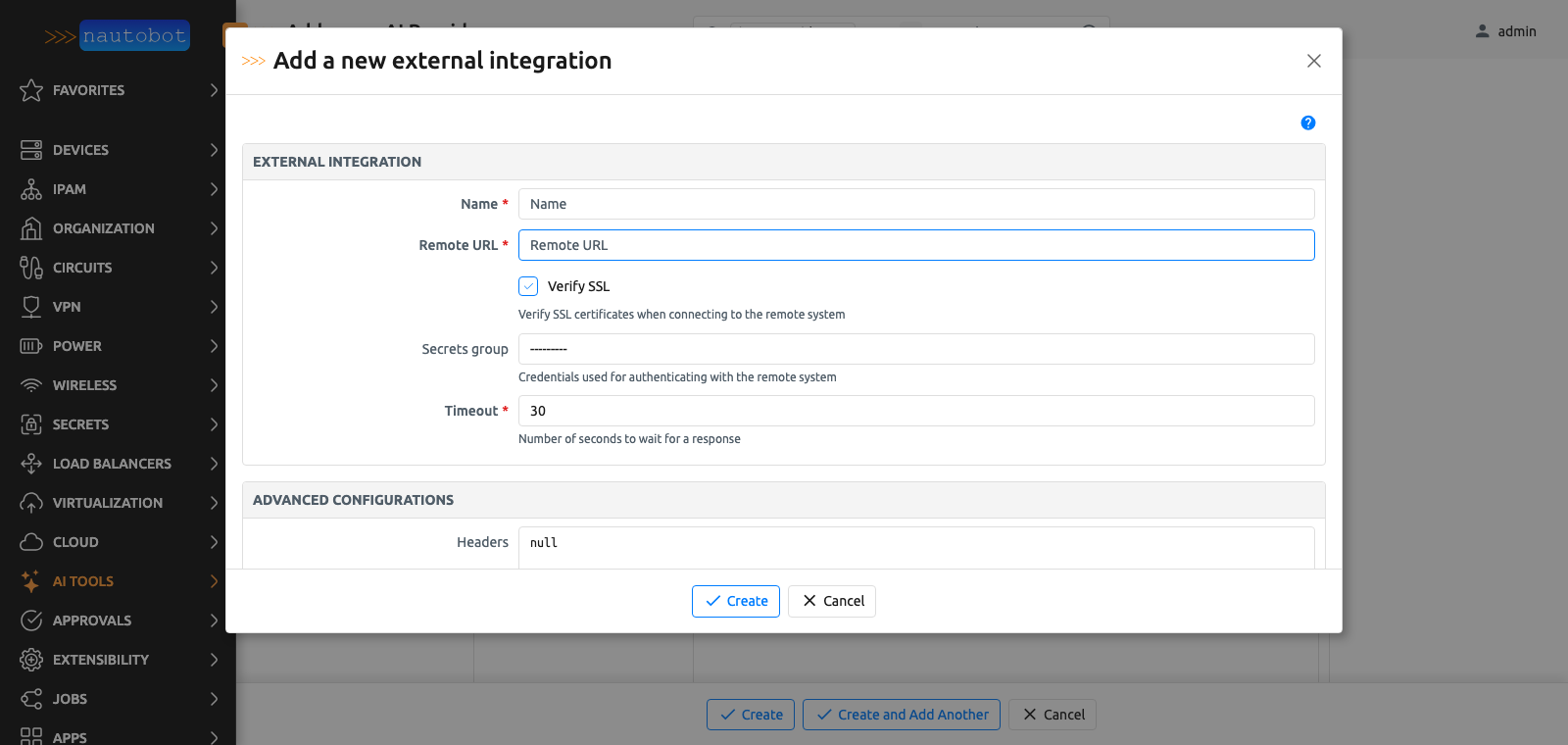

The request settings all come from the provider's External Integration:

External Integration field	Use
`remote_url`	The base URL. A trailing `/v1` is not duplicated.
`headers`	Sent with the request, after Jinja2 rendering.
`secrets_group`	Supplies the API key. See below.
`verify_ssl`	Passed to the HTTP client.
`ca_file_path`	Used in place of `verify_ssl` when set.
`timeout`	Passed to the HTTP client.

MCP Server Discovery¶

Property	Value
Request	An MCP `initialize` handshake, then `tools/list`, paged
Trigger	The MCP Server Discovery Job, run by a user or on a schedule

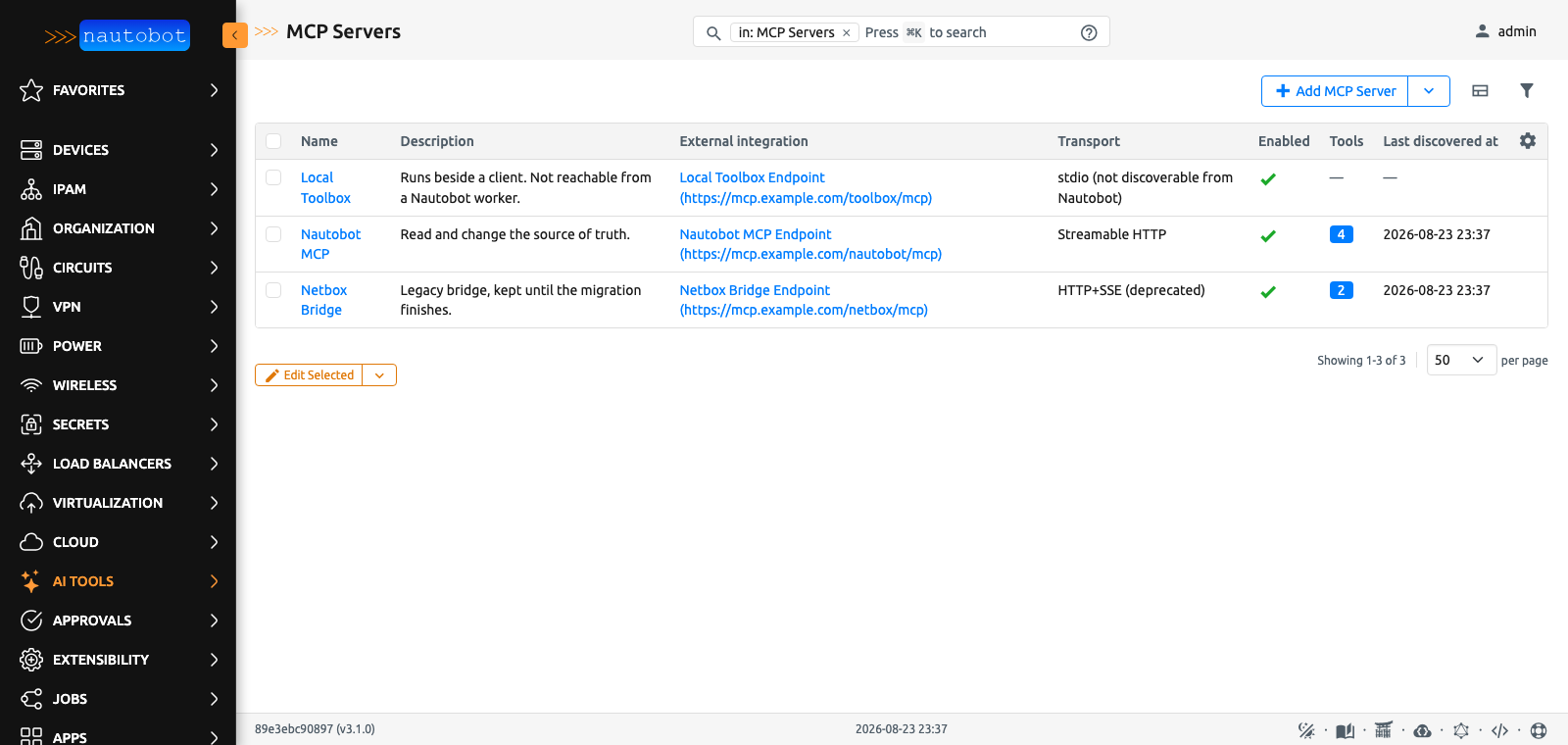

Target	Every enabled MCP Server whose transport is `streamable-http`
Response	The server's capabilities, its own metadata, and its tool definitions

A stdio server is a subprocess of its client, so a Nautobot worker cannot reach one, and this app speaks no HTTP+SSE. Discovery skips both and says so. Register their tools by hand.

Neither job follows an HTTP redirect to another origin while carrying the integration's headers. A credential belongs to the host it was configured for, and a redirect is that host naming another one.

This job needs the optional discovery extra, which brings the MCP client library:

pip install 'nautobot-ai-models[discovery]'

Without it the job stops before it contacts anything and names the extra. Every other part of the app works without it.

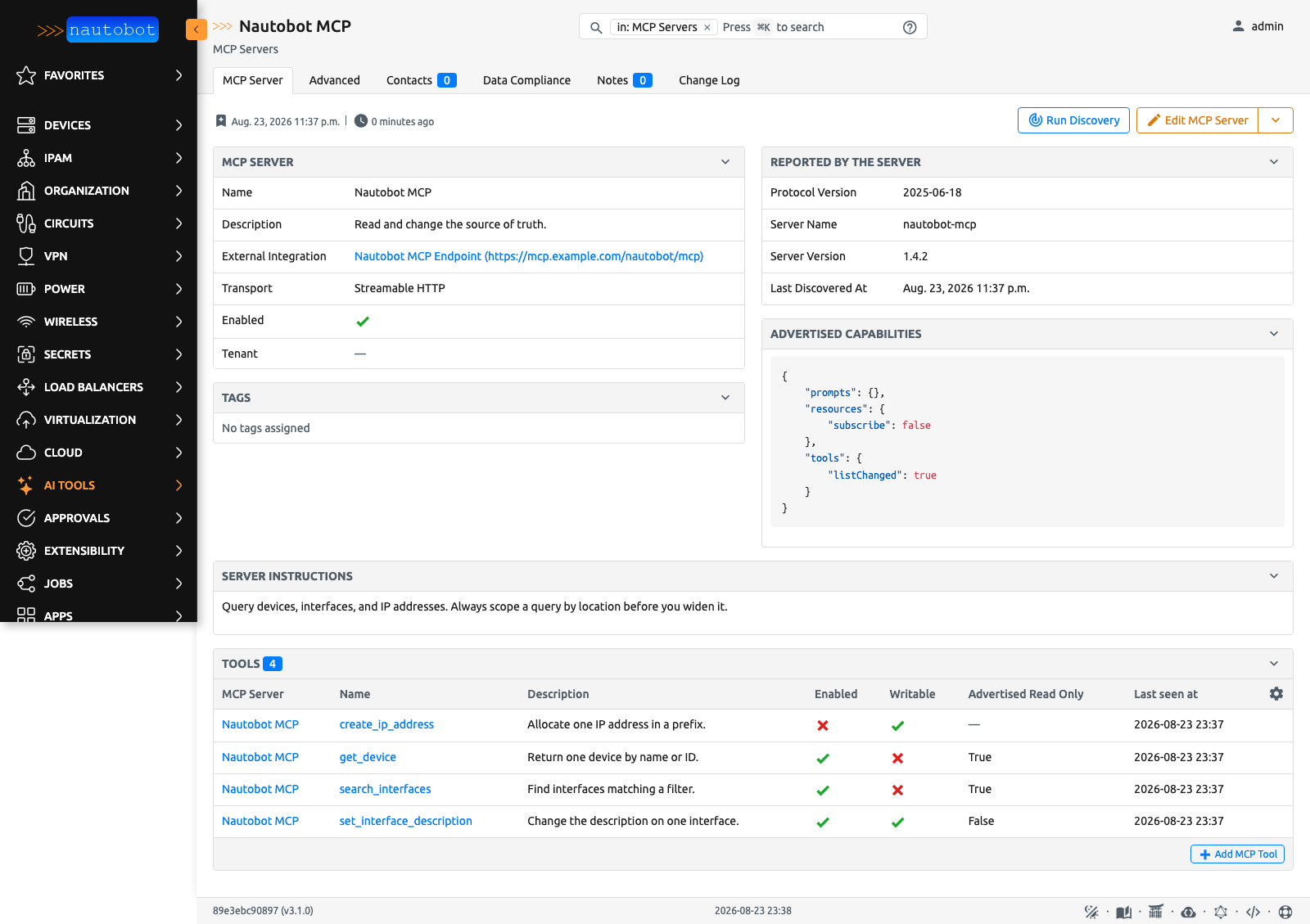

The job records what a server advertised. It decides nothing from it. The MCP specification requires that a client treat a server's own annotations as untrusted, so advertised_read_only is stored and shown, and writable stays whatever a person set.

Credentials¶

Attach a Secrets Group to the External Integration. Define a secret with:

Access type: HTTP(S)
Secret type: token

The job reads that value and sends it as Authorization: Bearer <token>. The app never stores the value. The job log records the exception type on a failure, never a URL, a header, a token, or a response body.

From Other Systems to the App¶

Other systems read the catalog through the REST API. They do not write to it.

Nautobot REST API endpoints¶

Endpoint	Purpose
`/api/plugins/ai-models/ai-providers/`	List and manage AI Providers
`/api/plugins/ai-models/ai-models/`	List and manage AI Models
`/api/plugins/ai-models/mcp-servers/`	List and manage MCP Servers
`/api/plugins/ai-models/mcp-tools/`	List and manage MCP Tools

List every enabled model for one provider:

curl -s -H "Authorization: Token $NAUTOBOT_TOKEN" \
  "https://nautobot.example.com/api/plugins/ai-models/ai-models/?provider=my-provider&enabled=true"

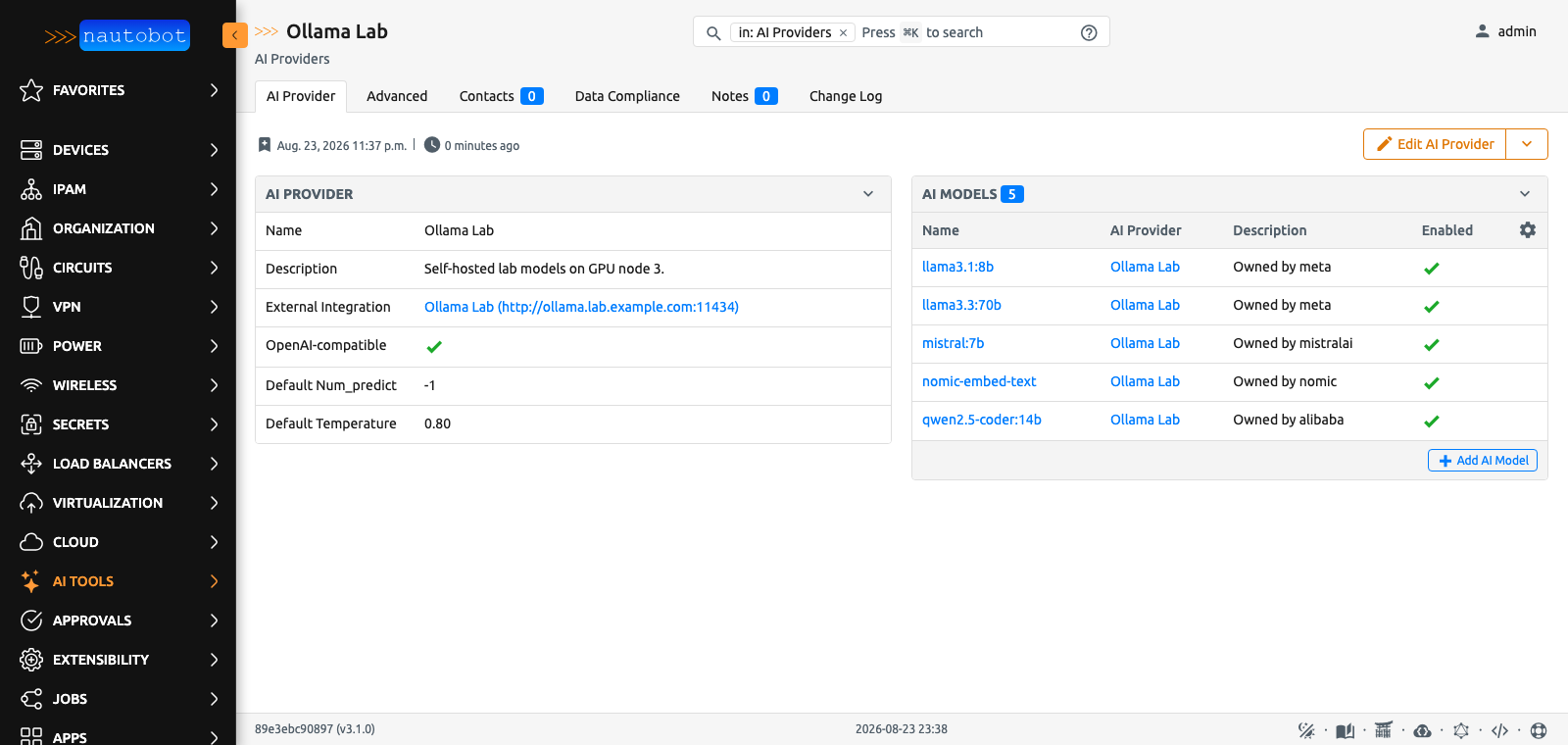

Read one provider with its External Integration expanded:

curl -s -H "Authorization: Token $NAUTOBOT_TOKEN" \
  "https://nautobot.example.com/api/plugins/ai-models/ai-providers/?depth=1"

List every MCP tool a caller may use without approval:

curl -s -H "Authorization: Token $NAUTOBOT_TOKEN" \
  "https://nautobot.example.com/api/plugins/ai-models/mcp-tools/?enabled=true&writable=false"

Every endpoint accepts the standard Nautobot filters and lookup expressions, for example ?name__ic=llama.

The fields the MCP discovery job owns are read-only over the API. A client that could change them could make the registry claim a server reported something it never did.
