Configuration

• Go to Invoicing > Payment Acquirers > Adyen
• Add the Api key corresponding to the backend user

Usage

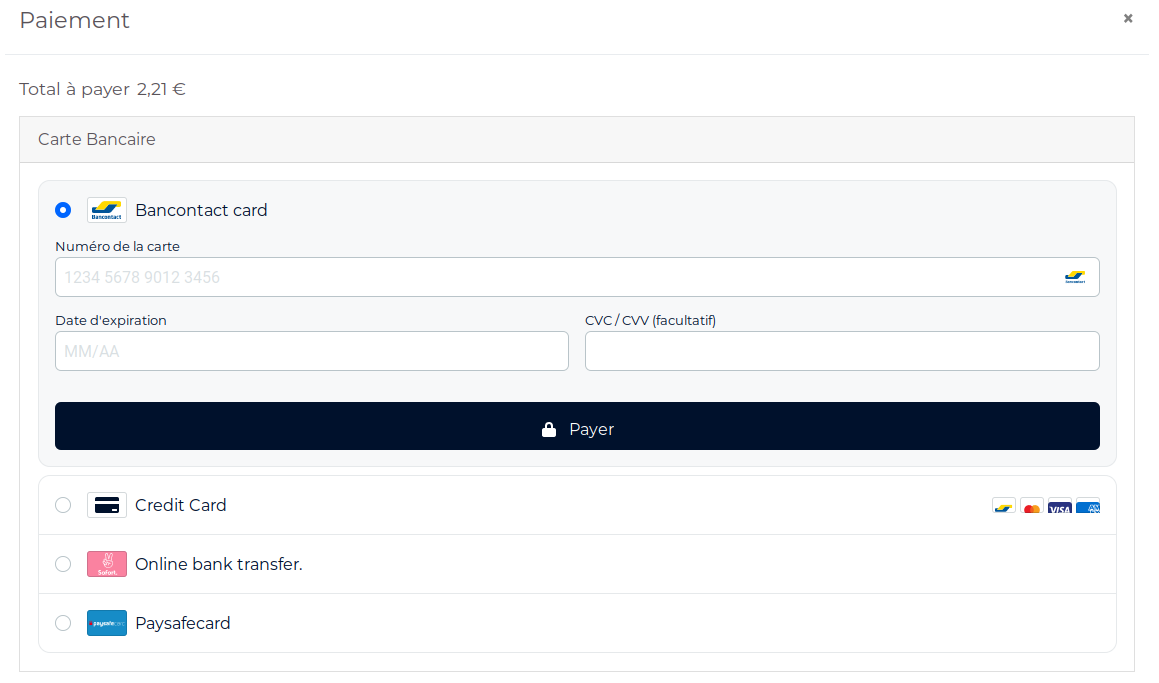

This has been developed following https://docs.adyen.com/checkout/drop-in-web and will allow to get automatic payment form generated by Adyen like:

Four services are exposed to manage payments with Adyen.

Here are the services (that can be explored and tested with Swagger):

• paymentMethods

  • This will call Adyen to retrieve all backend configured payment methods that correspond to the “payable” object (in terms of amount, country, currency, … see Adyen)

  • This takes as parameters:

    • target: (eg.: “current_cart”)
    • payment_mode_id: The Adyen payment mode

  • This will return a dict containing payment methods that are activated on the Adyen backend and intended to be passed to the drop-in widget.

{
 "paymentMethods":[
  {
    "details":[...],
    "name":"Credit Card",
    "type":"scheme"
    ...
  },
  {
    "details":[...],
    "name":"SEPA Direct Debit",
    "type":"sepadirectdebit"
  },
  ...
  ]
}

• payments

  • This will initiate the payment itself.

  • This takes as parameters:

    • target: (eg.: “current_cart”)
    • payment_mode_id: The Adyen payment mode
    • transaction_id: The current transaction
    • payment_method: The Adyen payment method chosen (bcmc, scheme, …)
    • return_url: The url to return to in case of redirection

  • This will return a dict containing payment response containing :

{
  "resultCode":"IdentifyShopper",
  "action":{
    "paymentMethodType":"scheme",
    "token":"eyJ0aHJlZURTTWV0aG9kTm90aWZpY...",
    "type":"threeDS2Fingerprint"
  },
  "authentication":{
    "threeds2.fingerprintToken":"eyJ0aHJlZURTTWV0aG9kTm90aWZpY..."
  },
  "details":[
    {
      "key":"threeds2.fingerprint",
      "type":"text"
    }
  ],
  "paymentData":"Ab02b4c0!BQABAgCuZFJrQOjSsl\/zt+..."
}

• payment_details

  • This will allow to pass further details required by provider

  • This takes as parameters:

    • data
    • transaction_id

  • This will return :

{
 data: {
    details: {
      threeds2.fingerprint: "eyJ0aHJlZURTQ29tcEluZCI6IlkifQ=="
    },
    paymentData: "Ab02b4c0!BQABAgAKspbjN8+5..."
 }
}

Bug Tracker

Bugs are tracked on GitHub Issues. In case of trouble, please check there if your issue has already been reported. If you spotted it first, help us smashing it by providing a detailed and welcomed feedback.

Do not contact contributors directly about support or help with technical issues.

Credits
